| Model | YRDC601000 | YRDC801000 |
| Power Supply | 3P+N+PE | |
| Rated Voltage | 400V AC | |
| Frequency | 50/60Hz | |
| Output Voltage | 200~1000V DC | |
| Maximum Current | 200A | 250A |
| Rated Power | 60kW | 80KW |
| Charge Connector | CCS2 | |
| Cable Length | 5m | |
| Enclosure | Galvanized steel | |
| LED Indicator | Green/Yellow/Red | |
| LCD Display | 7inch | |
| RFID Reader | Mifare ISO/IEC 14443 A | |
| Start Mode | Plug&Charger/RFID card | |
| Emergency Stop | Optional | |
| Energy Meter | MID certified | |
| RCD | Type A | |
| Ingress Protection | IP54 | |
| Impact Protection | IK08 | |
| Electrical Protection | Over current protection, Short circuit protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection | |
| Certification | CE | |
| Certification Standard | EN/IEC 61851-1: 2017, EN/IEC 61851-23: 2014 | |
| Warranty | 2 years | |
| Installation | Floor-stand | |
| Cooling Method | Fan cooling | |
| Noise | ≤60dB | |
| Work Temperature | -30℃~+50℃ | |
| Work Humidity | 5%~95% | |
| Work Altitude | <2000m | |
| Product Dimension | 1600*600*200mm (H*W*D) | |
| Package Dimension | 870*816*1800mm (L*W*H) | |
| Net Weight | 160kg | |
| Gross Weight | 200kg | |
| External Package | Wood case | |
Product Introduction

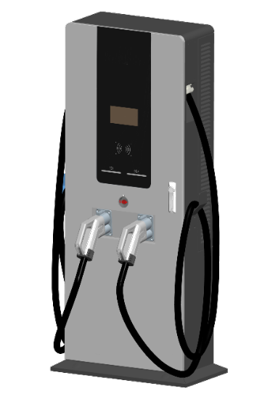

60kW/80KW DC fast charger
Application scope
ev charger
