| Model | YRDC360KW-Split | YRDC480KW-Split | |
| Power Supply | 3P+N+PE | ||
| Rated Voltage | 400V AC±15% | ||
| Frequency | 50/60Hz | ||
| Output Voltage | 200~1000V DC | ||
| Maximum Current | 250A | 250A | |
| Rated Power | 360kW | 480KW | |
| Charge Connector | CCS2(Charging gun*8) | CCS2(Charging gun*12) | |
| Cable Length | 5m | ||
| Enclosure | Galvanized steel | ||
| LED Indicator | Green/Yellow/Red | ||
| LCD Display | 7'' color touch screen | ||
| RFID Reader | Mifare ISO/IEC 14443 A | ||
| Start Mode | Plug&Play/RFID card/App | ||
| Emergency Stop | Optional | ||
| POS Terminal | Optional | ||
| WiFi | Optional | ||
| Ethernet | Optional | ||
| 3G/4G | Optional | ||
| OCPP | OCPP 1.6 Json | ||
| Efficiency | Max 95% | ||
| Power Factor | ≥0.99@50%~100%loading | ||
| THD | ≤5% @ 100% loading | ||
| Ripple Factor | ≤±1% | ||
| Energy Meter | MID certified | ||
| RCD | Type A | ||
| Ingress Protection | IP54 | ||
| Impact Protection | IK08 | ||
| Electrical Protection | Over current protection, Residual current protection, Short circuit protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection | ||
| Certification | CE | ||
| Certification Standard | EN/IEC 61851-1: 2017, EN/IEC 61851-23: 2014 | ||
| Warranty | 2 years | ||
| Installation | Floor-stand | ||
| Cooling Method | Fan cooling | ||
| Noise | ≤60dB | ||
| Work Temperature | -30℃~+50℃ | ||
| Work Humidity | 5%~95% | ||
| Work Altitude | <2000m | ||
| Product Dimension | 750*530*2000mm (W*D*H) | ||
| Package Dimension | 1020*670*2300mm (L*W*H) | ||
| Net Weight | 220kg | 250kg | |
| Gross Weight | 260kg | 290kg | |
| External Package | Wood case | ||
Product Introduction

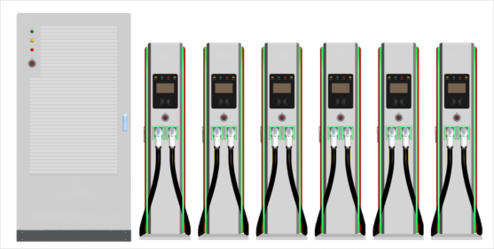

360kW&480kW DC Split charging pile
EV charger, charging station, fast charging
Application scope
EV charger, charging station, fast charging
