| Model | YRDC20750 |
| Power Supply | 3P+N+PE |
| Rated Voltage | 400V AC |
| Frequency | 50/60Hz |
| Output Voltage | 200~750V DC |
| Maximum Current | 50A |
| Rated Power | 20kW |
| Charge Connector | CCS2 cable |
| Cable Length | 5m |
| Enclosure | Galvanized steel |
| LED Indicator | Green/Yellow/Red |
| LCD Display | 4.3inch |
| RFID Reader | Mifare ISO/IEC 14443 A |
| Start Mode | Plug&Charger/RFID card |
| Emergency Stop | Optional |
| Energy Meter | MID certified |
| RCD | Type A |
| Ingress Protection | IP54 |
| Impact Protection | IK08 |
| Electrical Protection | Over current protection, Short circuit protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection |
| Certification | CE |
| Certification Standard | EN/IEC 61851-1: 2017, EN/IEC 61851-23: 2014 |
| Warranty | 2 years |
| Installation | Wall-mount |
| Cooling Method | Fan cooling |
| Noise | ≤60dB |
| Work Temperature | -30℃~+50℃ |
| Work Humidity | 5%~95% |
| Work Altitude | <2000m |
| Product Dimension | 600*410*156mm (H*W*D) |
| Package Dimension | 815*525*390mm (L*W*H) |
| Net Weight | 38kg |
| Gross Weight | 41kg |
| External Package | Carton |
Product Introduction

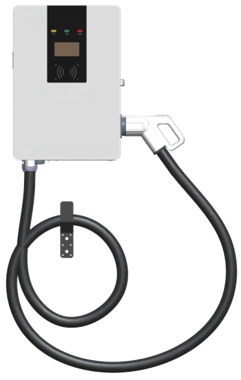

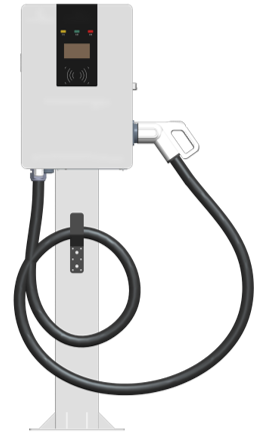

20KW DC EV charger for type 2 standar EV
Application scope
EV charging, new energy
